在低壓成套電氣開關設備系列產品中，MNS低壓抽屜柜，以下簡稱MNS低壓柜，是為常用的低壓開關柜，下面和小編一起來了解下它吧。
In the series of low-voltage complete electrical switchgear products, MNS low-voltage drawer cabinet, hereinafter referred to as MNS low-voltage cabinet, is a commonly used low-voltage switchgear. Let's take a look at it with my editor.

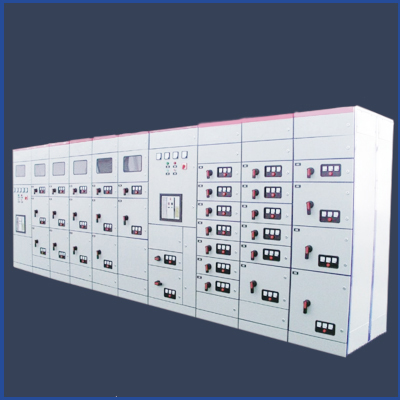

MNS低壓抽屜柜是一種用標準模件由工廠組裝（FBA）的組合式柜型。適用于發電廠、變電站、石油化工、冶金軋鋼交通能源、住宅小區等場所的配電之用，作為交流50~60Hz，額定工作電壓交流660V及以下的電力系統的配電設備的電能轉化、分配以及控制之用。
MNS low-voltage drawer cabinet is a factory assembled (FBA) modular cabinet type using standard modules. It is suitable for power distribution in power plants, substations, petrochemical, metallurgical, steel rolling, transportation, energy, residential areas, and other places. It is used for power conversion, distribution, and control of power distribution equipment in power systems with AC 50~60Hz and rated working voltage AC 660V and below.
MNS低壓抽屜柜的產品特點：
Product features of MNS low-voltage drawer cabinet:
開關柜設計緊湊，能夠以較小的空間容納更多的功能單元。
The switch cabinet is compact in design and can accommodate more functional units in a smaller space.
其結構通用性強、組裝更為靈活。以25mm為模數的C型型材滿足各種結構形式、防護等級及使用環境的要求。
Its structure has strong versatility and more flexible assembly. The C-shaped profile with a modulus of 25mm meets the requirements of various structural forms, protection levels, and use environments.
開關柜采用標準模塊設計，分別可以組成保護、操作、轉換、控制、調節、測定、指示等標準單元，用戶可根據需要任意選擇組裝。以200余種組裝件可以組裝不同方案的柜架結構和組成固定分隔或者抽屜單元。
The switch cabinet is designed with standard modules, which can form standard units for protection, operation, conversion, control, regulation, measurement, and indication. Users can choose to assemble them as needed. More than 200 types of assembly components can be used to assemble different cabinet frame structures and form fixed partitions or drawer units.
低壓柜的上，大量采用高強度阻燃型的工程塑料組件，有效地加強防護性能。
For the safety of low-voltage cabinets, a large number of high-strength flame-retardant engineering plastic components are used to effectively enhance safety protection performance.
MNS低壓抽屜柜的三化程度高，可大大的壓縮儲存和運輸預制件的場地。
The MNS low-voltage drawer cabinet has a high degree of standardization, which can greatly compress the space for storing and transporting prefabricated parts.
MNS低壓抽屜柜的使用條件：
Service conditions of MNS low-voltage drawer cabinet:
周圍空間溫度不高于40℃，不低于-5℃，并且24h平均溫度不高于35℃
The temperature of the surrounding space is not higher than 40 ℃, not lower than - 5 ℃, and the 24-hour average temperature is not higher than 35 ℃
周圍空氣清潔，相對濕度在高溫度為40℃時候不超過50%，在較低溫度時候允許有較高的相對濕度。
The ambient air is clean, and the relative humidity does not exceed 50% at high temperatures of 40 ℃. Higher relative humidity is allowed at lower temperatures.
戶內使用，海拔高度不超過2000m；在無顯著搖動和沖擊震動的地方
For indoor use, the altitude shall not exceed 2000m; In a place without significant shaking and shock vibration
污染等級為3級；抗震等級為8級。
The pollution level is Level 3; The seismic rating is Level 8.
開關柜的運輸和存儲過程中的溫度可在-25℃55℃，在短時間內的溫度可達到70℃。
The temperature of the switchgear during transportation and storage can range from - 25 ℃ to 55 ℃, and the temperature can reach 70 ℃ in a short period of time.
MNS低壓抽屜柜的柜體基本結構是由C型型材壓制組裝而成。內層隔板均作了鍍鋅處理。四周門板、側板均作粉末噴涂處理，有效的安裝高度為72E。您對此還有什么事項要了解的就來我們網站
http://www.apdg.com.cn看看吧！
The basic structure of the MNS low-voltage drawer cabinet is formed by pressing and assembling C-shaped profiles. The inner partition is galvanized. The surrounding door panels and side panels are powder coated, with an effective installation height of 72E. If you have anything else to learn about this, please come to our website http://www.apdg.com.cn Look!
